Membrane test experiment report
2021-09-17
Basic Information
| Equipment name | Atmospheric Plasma Treatment System | ||
| Equipment model | SPA-5000 | Experimental purpose | To test the SPA-5000 atmospheric plasma cleaning machine used for CPI film, under what conditions, the water drop angle of the product can be made below 30 degrees. |

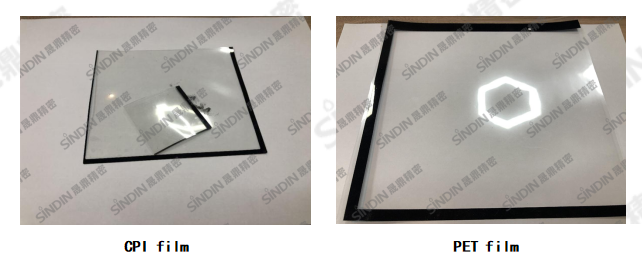

| Assessment method | Contact angle measuring instrument | Handling products | CPI film, PET film |
| Experimental parameters | see form | Test Results | see form |
| Experimental method | 1. Take one test point on each of the four corners and the middle of the CPI film, and take 5 test points for each piece of CPI film. 2. Carry out the water drop angle test before processing, save the data, and then carry out the water drop angle test after processing, save the data, and compare the data before and after. | ||
|
|||

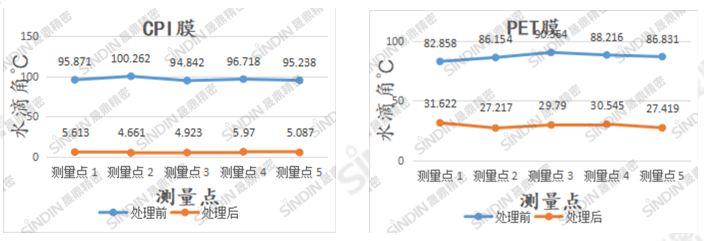

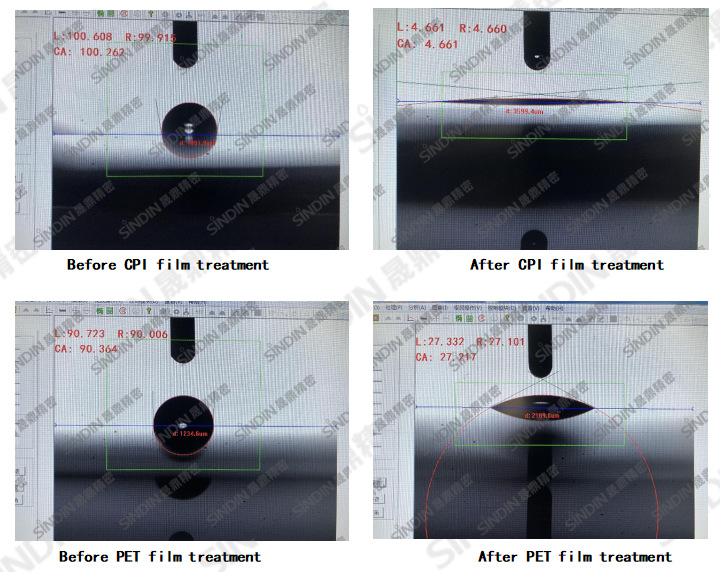

Before and after comparison
